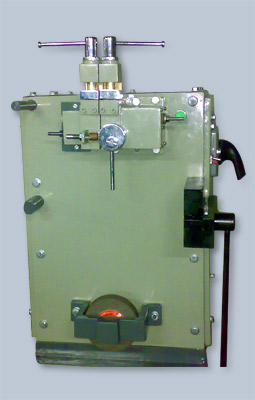

Sterco Band Saw Butt Welder is the result of many years of experience, research and development. It is the most modern method of joining Band Saw Blades giving a joint strength 25% higher than that of the base metal strength. It eliminates the old process of overlapped brazing. Resistance welding is quick and automatic, thus eliminating human error and giving a perfect and strong joint.
WeldIng Process
The Band Saw Blades are cut straight exactly at right angles and free of burrs. Welding current, upsetting pressure and upsetting way are set according to the blade width the blade ends being rigidly clamped by special quick acting jaws. By Depressing the welding lever the automatic welding cycle starts. The two ends are heated upto forging temperature in a few seconds, then automatically forged (upset) and current switches off.
Annealing Attachment
The Upsetting pressure is now turned to annealing and job again clamped properly with extended jaws distance which comes in automatically flipping the the lever to annealing position. By turning the annealing switch on which the heat position are provided the jo is annealed in order to normalize the brittleness in the welded zone. Depending on the type of material, the annealing process must be repeated several times if needed.
Shearing Attachment
Special shearing attachment is provided on the machine itself for cutting the piece at right angles, except for model MB-3 + 4.
Grinding Attachment
The attachment is provided for removing the burrs from the welded zone. This unit is mounted on the machine.
Technical Specifications
MODEL
MB - 1
MB - 2
MB - 3
MB - 4
Job
Band Saw Blades
Band Saw Blades
Band Saw Blades
Band Saw Blades
Welding Capacity
3 mm to 25 mm
10 mm to 35 mm
15 mm to 50 mm
25 mm to 60 mm
KVA Rating
3 KVA
5 KVA
8 KVA
15 KVA
Maximum Primary Current
13 Amps
22 Amps
20 Amps
37 Amps
Customer to Provide
Power Supply
220 Volts, 50 Cycles, Single phase, AC for Model MB-1 & MB - 2 and 415 Volts, Single phase, 50 cycle for Model MB - 3 & MB - 4
